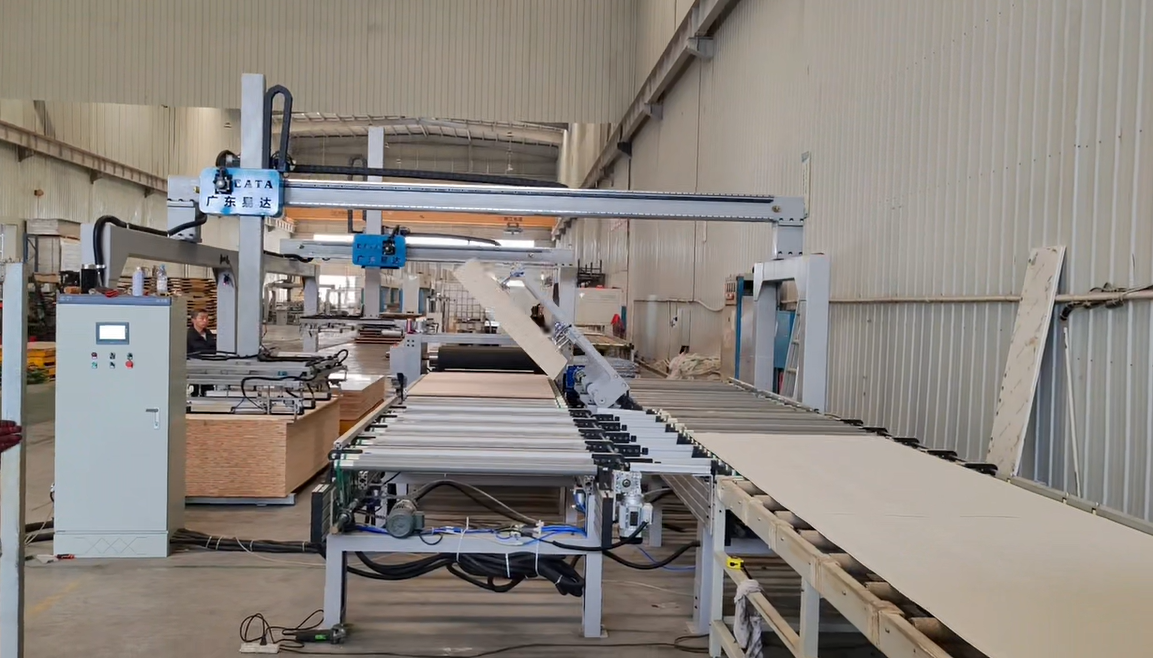

Flip Board Lamination Machine

Quick Detail:

1. Efficient Panel Flipping: Specialized machine for accurately flipping and laminating one panel onto another.

2. Versatile Bonding: Designed for composing SPC with wood, insulation boards, and door cores.

3. High Productivity: Achieves a rate of 4 pieces of 3-meter boards per minute.

4. Heavy-Duty Construction: Features a robust 2-ton lift platform and a 5KG/m² flipping capacity

5. Space-Saving Design: Compact 6.5-meter length (customizable) for efficient floor space utilization.

Description:
The LY-10-1300 Flip Board Laminating Machine is an essential piece of equipment for manufacturers specializing in composite panels, particularly in the door, furniture, and decorative panel industries. It automates the precise and labor-intensive process of bonding two separate board layers (e.g., an SPC decorative surface to a wooden or insulation core). Its core function is to lift the bottom panel, then use a flipping mechanism to accurately pick up, rotate 180 degrees, and align the top panel onto the adhesive-coated bottom panel. This ensures perfect registration and a bubble-free bond. With a standard processing width of 1.3 meters and support for boards up to 3 meters long, this machine boosts production efficiency, ensures consistent laminate quality, and significantly reduces manual handling, making it ideal for batch production of high-quality composite panels for doors, walls, and partitions.

Specifications:

Notices:

Ensure the adhesive (applied by a separate gluing system before this station) has suitable open time (working life) to allow for the flipping and aligning process.

The flatness and consistency of the input panels are crucial for achieving a flawless lamination result.

Regular maintenance of the vacuum cups or mechanical grippers on the flipping head is necessary to ensure reliable pickup and release.

Operators should be trained in the safety procedures for working around moving heavy loads and the flipping mechanism.

Applications:
Core equipment for manufacturing layered composite panels:

Ecological Door Production: Laminating SPC or HPL surfaces onto wooden or honeycomb door cores.

Decorative Wall/Ceiling Panels: Bonding wear-resistant SPC surfaces to substrate boards like MDF or calcium silicate board.

Furniture Component Production: Creating composite panels for cabinets, tables, and other fixtures.
