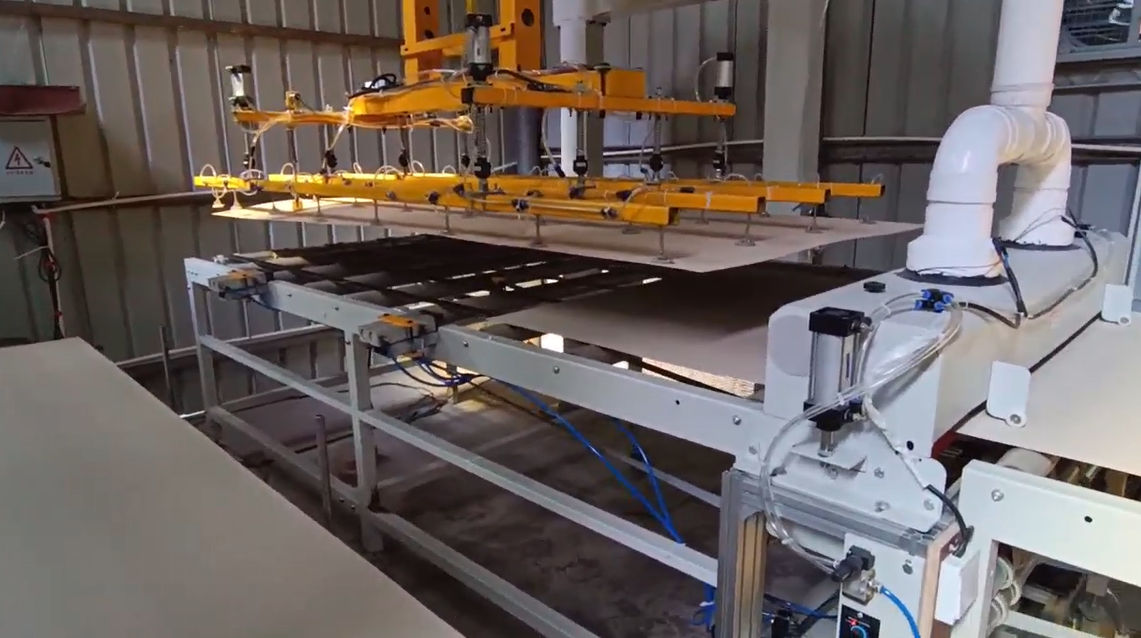

Composite Board Stacking & Auto Feed System – Three‑Axis Robotic Palletizer

Specifications:

Quick Detail:

1.Three-Axis Freedom: Provides flexible X, Y, Z linear motion for precise pick-and-place operations.

2.Automatic Palletizing: Designed for automated stacking of sheets and composite panels onto pallets.

3.High Efficiency: Capable of handling up to 4 pieces of 3-meter long boards per minute.

4.Heavy-Duty Performance: Robust conveyor line supports up to 3 tons, and arm load up to 20KG/m² (optional).

5.Integrated Solution: Works seamlessly with existing production lines for feeding and material handling.

Notices:

1. Factory Layout Requirements – Please verify that your workshop provides sufficient floor space for the machine's 6‑meter length, as well as adequate clearance for safe operation and pallet movement around the unit.

2. Customized End‑Effector – The gripper or suction cup assembly must be chosen or adapted according to the specific panel material, dimensions, and surface characteristics of your products.

3. System Integration & Operator Training – Seamless automation depends on proper connection with upstream equipment (such as cutting or laminating machines) and downstream material flow (conveyors or pallet dispatch). Additionally, operators should receive basic instruction on programming, daily operation, and safety protocols for the robotic system.

Applications:

Perfect for automating material handling in panel and sheet manufacturing:

1. Automatic Sheet Feeding – Automatically supplies raw panels or semi‑finished boards to processing equipment such as cutters or lamination presses.

2. Finished Product Palletizing – Places completed composite panels, boards, or large‑format sheets onto pallets for warehousing or shipping.

3. Line Bridging – Functions as a flexible transfer unit to connect two separate conveyor lines or workstations.

Guangdong Longyu Machinery Equipment Co., Ltd. was established in 2006. It is a national high-tech enterprise that integrates scientific research,
design, manufacturing, sales, and services. It focuses on the research and production of coating, composite, and pressing equipment. The company has
over 40 patents, filling multiple industry gaps both domestically and internationally, and its products are sold both domestically and internationally. The
production line is mainly used in the intelligent coating and composite pressing process of panel in the automotive, furniture, and building materials
industries. Such as cabin boards (RVs and refrigerated trucks), marine insulation boards, building aluminum honeycomb boards, furniture boards, rock
wool fireproof boards, fireproof doors, CLT wooden boards, etc.

Longyu Machinery is located in the South China Advanced Equipment Park in Qujiang District, Shaoguan City, Guangdong Province, with well-developed
transportation. It covers an area of 50 acres and has a construction area of 20000 square meters. It has 4 standard factory buildings, research and
development office buildings, and apartment buildings. Strong production capacity, convenient living, and developed logistics. There are currently 60
employees, including 5 senior engineers, 10 intermediate engineers, 10 service personnel, and 3 after-sales service centers, which have laid a solid
foundation for Longyu Machinery's development in domestic and international markets.
Longyu Machinery has 20 years of experience in automated coating and composite pressing, and will continue to lead the trend of intelligent
development, providing global customers with higher quality, efficient, and sustainable intelligent coating and composite solutions
